Magicblocks Lesson 09: Proximity Sensor
Magicblocks Project

Make a Proximity Sensor with Magicbit [Magicblocks]

Use a Proximity Sensor with a Magicbit using Magicblocks

Components Required

Story

Hello and Welcome, This tutorial will teach you to use a Proximity Sensor with a Magicbit using Magicblocks.

There are 1 main method of achieving this goal;

  • By using Dashboard Text Output.

First, log into your Magicblocks account,

Magicblocks is easy visual programming software for the program of your Magicbit. Anyone can program their microcontroller by using magicblocks.io and there is no need for programming knowledge. You can sign up for free.

Start and Open the Playground.

Next, make sure your Magicbit is connected to the internet and plugged in, and also linked to your account through Device Manager.

All Done? Then scroll down to Method 1

Set up the Digital In Block

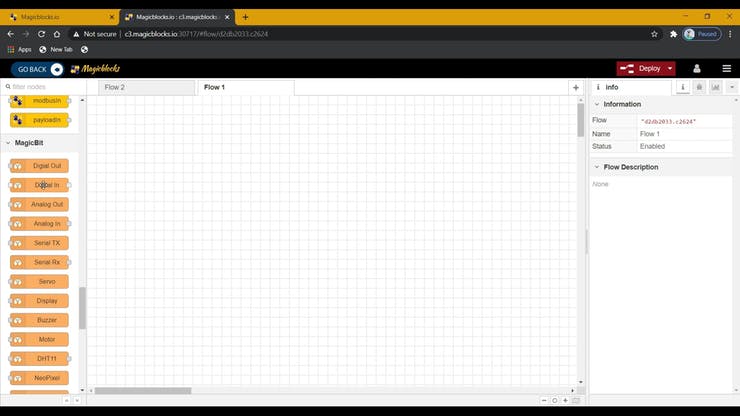

1. Drag & Drop the Digital In block from the Magicbit nodes section to the flow.

Make a Proximity Sensor with Magicbit pic 1
Drag and drop Digital In block

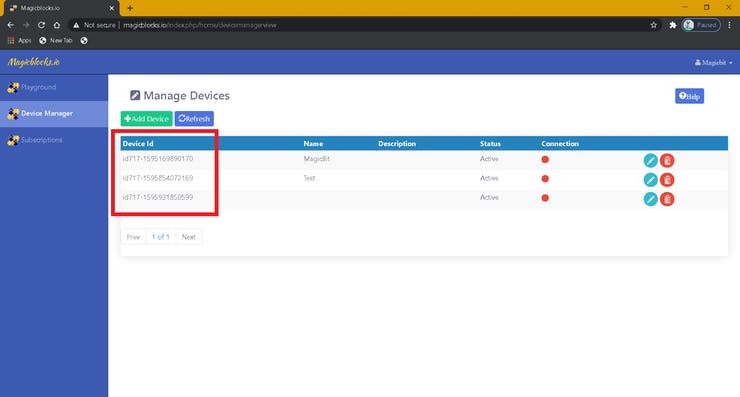

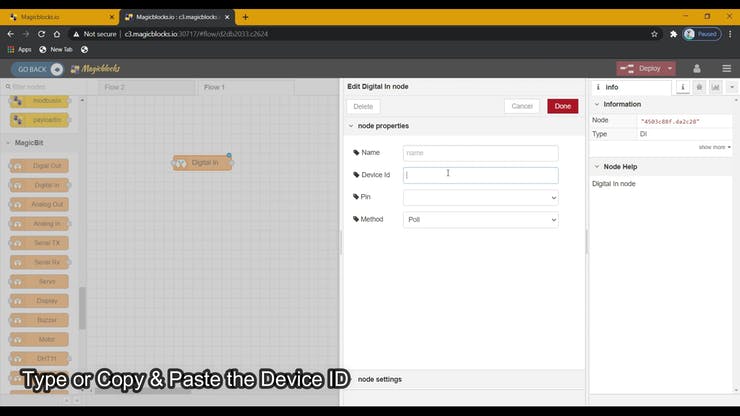

2. Double-click on the Digital In block and type or paste your unique Device ID from the Device Manager Tab on your Magicblocks account. [This will link the module connected as a digital signal from the Magicbit]

Make a Proximity Sensor with Magicbit pic 2
Edit Digital In node
Make a Proximity Sensor with Magicbit pic 3
Select Device

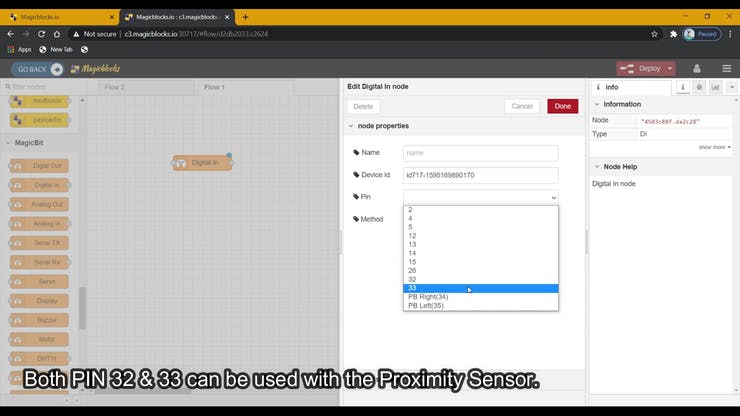

3. Both PINs 32 & 33 can be used with the Proximity Sensor, so connect it to one of them and make sure to choose the correct PIN (which you connected the sensor) from the drop-down menu.

Make a Proximity Sensor with Magicbit pic 4
Edit node

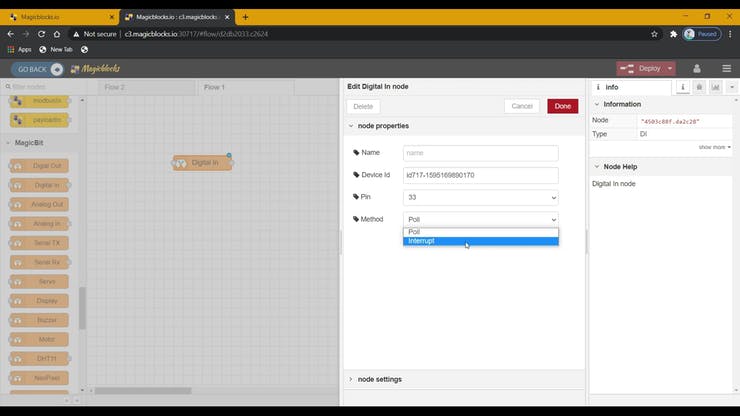

4. Select the Method as Interrupt from the drop-down menu.

Make a Proximity Sensor with Magicbit pic 5
Edit node

[Magicbit PIN Layout]

Make a Proximity Sensor with Magicbit pic 6
Pinout of Magicbit

4. In this Tutorial, PIN 33 will be used.

Make a Proximity Sensor with Magicbit pic 7
Plugin the sensor module

Set up the Change Block

(This Node is used to change the 1 & 0 signal input from the Digital In node to any text you want)

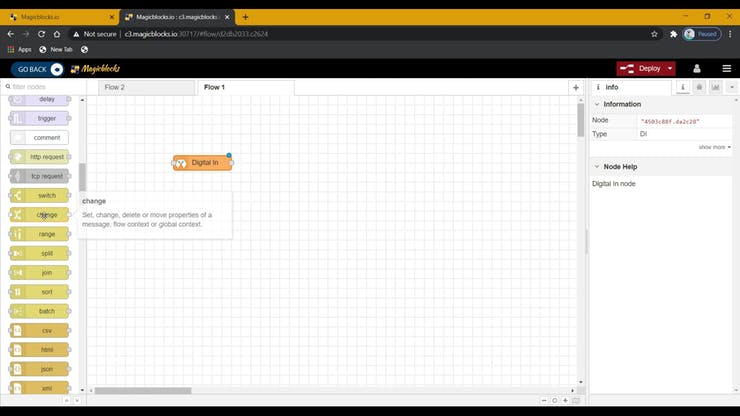

1. Drag & Drop the Change Block from the function nodes section on the left of the screen to the flow.

Make a Proximity Sensor with Magicbit pic 8
Drag and drop a change node

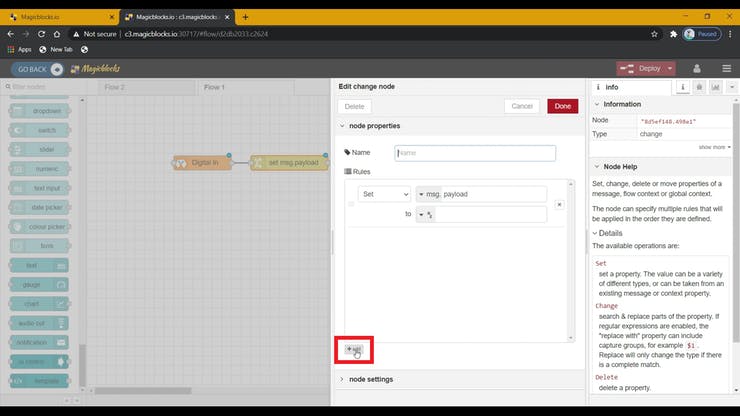

2. Add a new rule from the ‘+’ Button to use 2 rules.

Make a Proximity Sensor with Magicbit pic 9
Edit change node

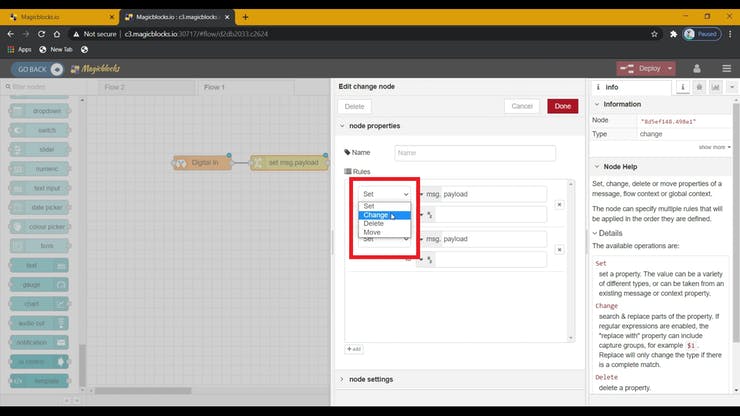

3. Change the function of both of the rules from Set to Change from the drop-down menu.

Make a Proximity Sensor with Magicbit pic 10
Edit change node

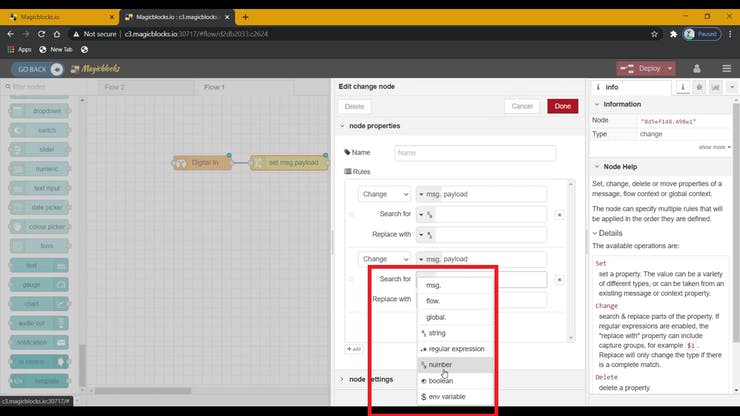

4. Next, change the ‘Search for’ function from String(text) to Number in both of the rules. And make sure the ‘Replace with’ function is set to String(text).

Make a Proximity Sensor with Magicbit pic 11
Edit change node

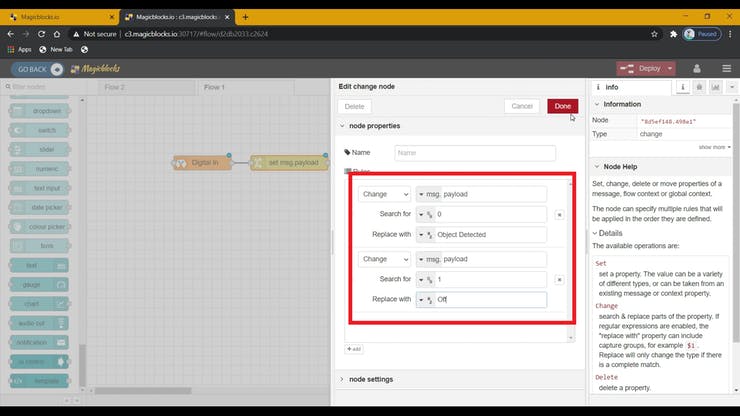

5. Set up the rules.

  • The First Rule is to search for ‘0’ in signal input and replace it with our text (e.g., ‘Object detected’ or ‘ON’)
  • The Second Rule is to search for ‘1’ in signal input and replace it with our text (e.g., ‘No object detected’ or ‘OFF’)

(image below shows an example of the rules)

Make a Proximity Sensor with Magicbit pic 12
Edited rules for the change node

Set up the Text Block

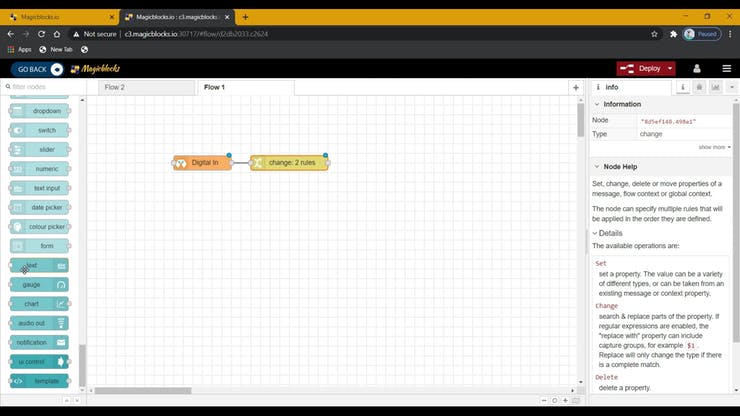

1. Drag & drop the Text block from the dashboard nodes section to the Flow.

Make a Proximity Sensor with Magicbit pic 13
Drag and drop a Text Block

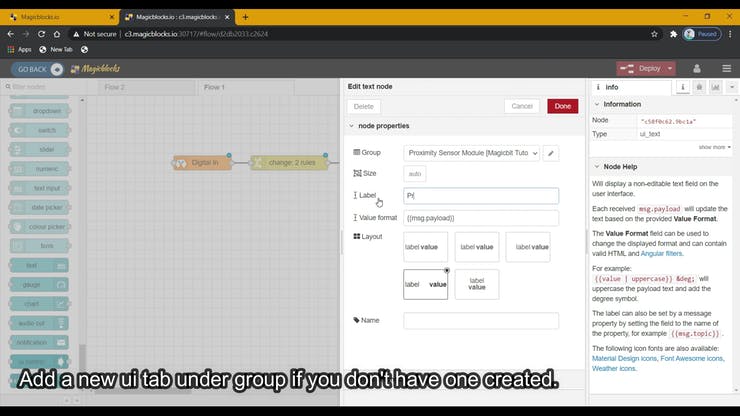

2. Double-click on the text node and set up a basic dashboard UI [user- interface] from the drop-down menu and a name for your field.

Make a Proximity Sensor with Magicbit pic 14
Edit text block

[Optional] Import Already Setup Nodes

If you had trouble setting up nodes, you can use the import feature in Magicblocks to get the nodes that have been already set up.

  • First copy this code to your clipboard;
[{"id":"e70f1883.1f7058","type":"change","z":"d2db2033.c2624","name":"","rules":[{"t":"change","p":"payload","pt":"msg","from":"0","fromt":"num","to":"Object Detected","tot":"str"},{"t":"change","p":"payload","pt":"msg","from":"1","fromt":"num","to":"Off","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":520,"y":900,"wires":[["8b1f072c.59d9e8"]]},{"id":"f9e26c9f.c4542","type":"DI","z":"d2db2033.c2624","name":"","epId":"","pin":"33","method":"1","x":320,"y":900,"wires":[["e70f1883.1f7058"]]},{"id":"8b1f072c.59d9e8","type":"ui_text","z":"d2db2033.c2624","group":"b6e2a4f1.2e9cd8","order":0,"width":0,"height":0,"name":"","label":"Proximity Sensor","format":"{{msg.payload}}","layout":"row-spread","x":750,"y":900,"wires":[]},{"id":"b6e2a4f1.2e9cd8","type":"ui_group","z":"","name":"Proximity Sensor Module","tab":"1e4dddd7.63fc02","disp":true,"width":"10","collapse":false},{"id":"1e4dddd7.63fc02","type":"ui_tab","z":"","name":"Magicbit Tutorial","icon":"dashboard","order":1}]
  • Click on the options menu on the top right-hand corner of the screen.
Make a Proximity Sensor with Magicbit pic 15
Import codes

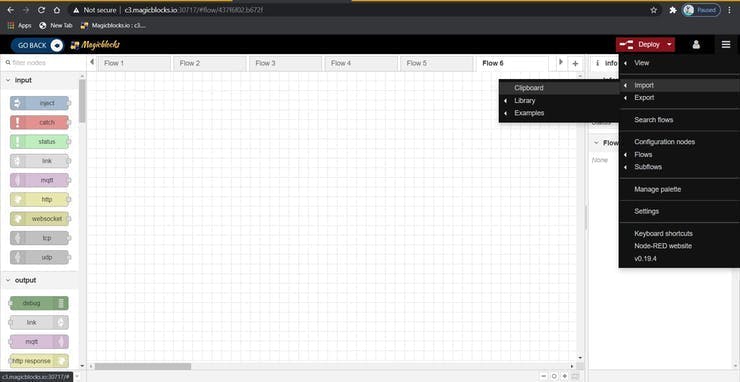

  • Next, hover your cursor over the Import sub-menu.
Make a Proximity Sensor with Magicbit pic 16
Import from the clipboard

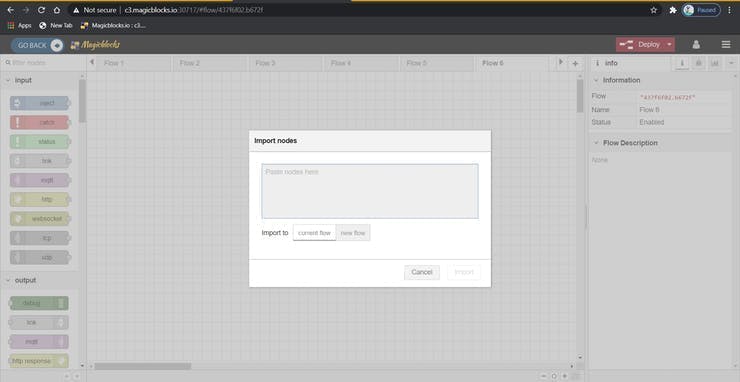

  • Then click on Clipboard and paste the code on your clipboard to the text field
Make a Proximity Sensor with Magicbit pic 17
Import codes from the clipboard
  • Select current flow or new flow and click on Import.

IMPORTANT

Make sure you type your device ID on the Digital In node properties and choose the PIN to which your Proximity Sensor is connected.

Finally, Deploying the Blocks

  • Connect all the blocks.
  • Click on the Deploy button on the top right-hand corner of the screen.

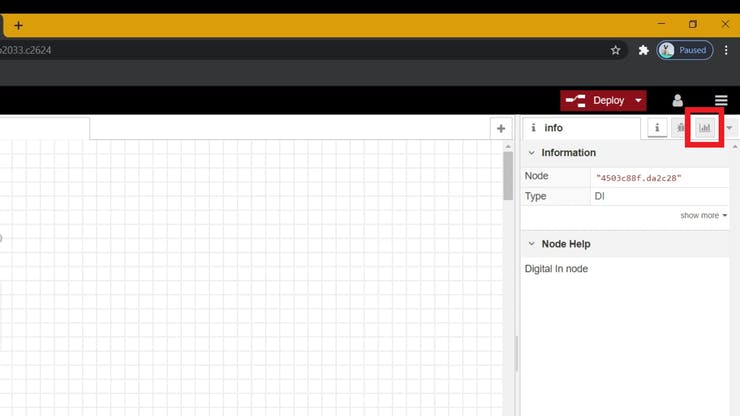

  • After deploying, go to the dashboard UI by clicking the link to the dashboard URL on the top right-hand corner of the screen.
Make a Proximity Sensor with Magicbit pic 18
Click the URL in the top right corner

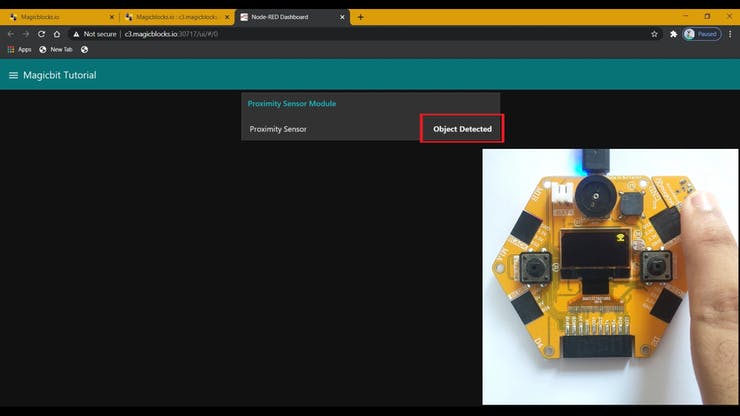

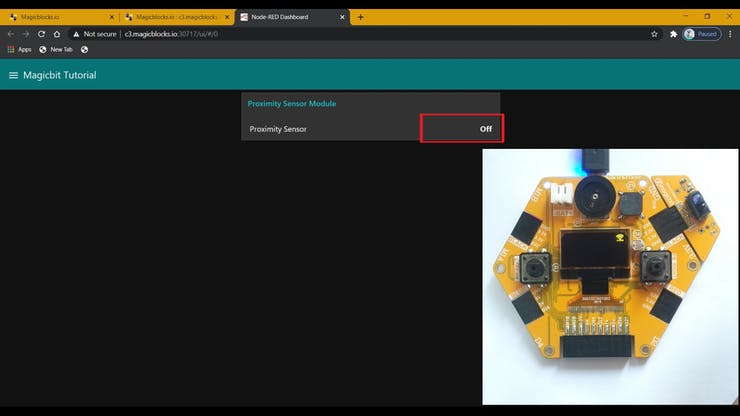

  • Use any Object or your hand to block the proximity sensor, and the text will be displayed on the dashboard.
Make a Proximity Sensor with Magicbit pic 19
Result of the project
Make a Proximity Sensor with Magicbit pic 20
Result of the project

Troubleshooting

  • Check whether your Magicbit is connected to the internet.
  • Check whether the Proximity Sensor is connected correctly and correct PIN is used (e.g., PIN 33).

If you need help or couldn’t understand a step be sure to check out our YouTube video by clicking here: Youtube Video
