Use the Buzzer on the Magicbit [Magicblocks]

Use the buzzer on the Magicbit using Magicblocks

Components Required

Story

Hello and Welcome, This tutorial will teach you to use the buzzer on the Magicbit using Magicblocks.

There are 1 main method of achieving this goal;

By using Inject Block.

First, log into your Magicblocks account,

Magicblocks is easy visual programming software for the program of your Magicbit. Anyone can program their microcontroller by using magicblocks.io and there is no need for programming knowledge. You can sign up for free.

Start and Open the Playground.

Next, make sure your Magicbit is connected to the internet and plugged in, and also linked to your account through Device Manager.

All Done? Then scroll down to Method 1

Set up the Buzzer Block

1. Drag & Drop the Buzzer block from the Magicbit nodes section to the flow.



buzzer project pic 1

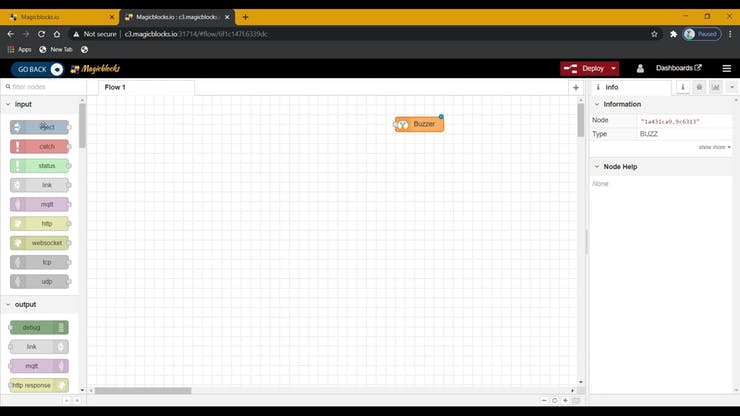

Drag and drop the Buzzer node from the dashboard.



2. Double-click on the Buzzer block and type or paste your unique Device ID from the Device Manager Tab on your Magicblocks account. [This will link the buzzer on your Magicbit with your Magicblocks account]



buzzer project pic 2

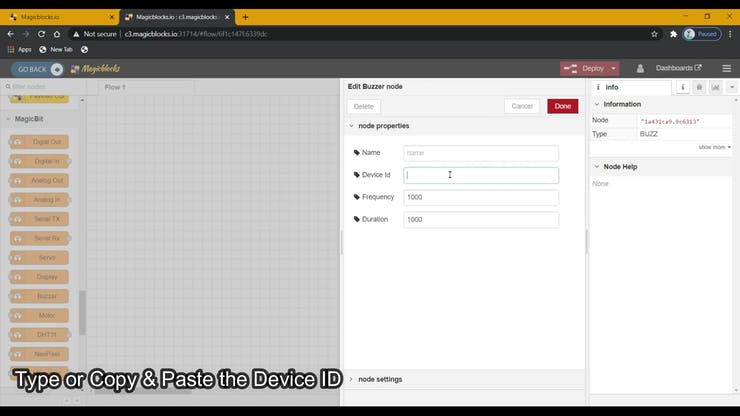

Edit the Buzzer node.



buzzer project pic 3

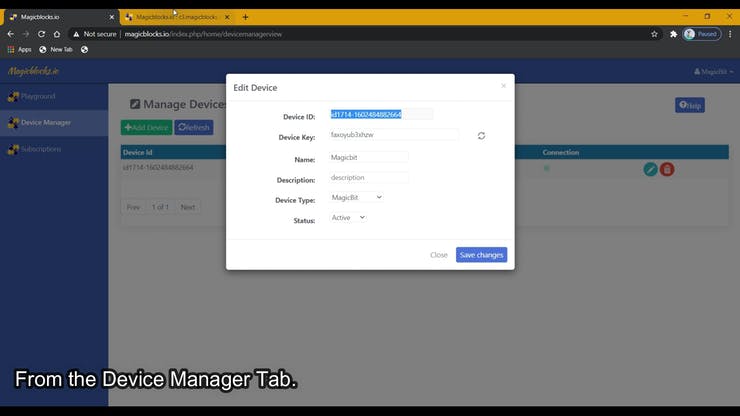

Device Manager Tab.



3. Frequency determines the frequency of the buzzer.



buzzer project pic 4
Edit node settings.

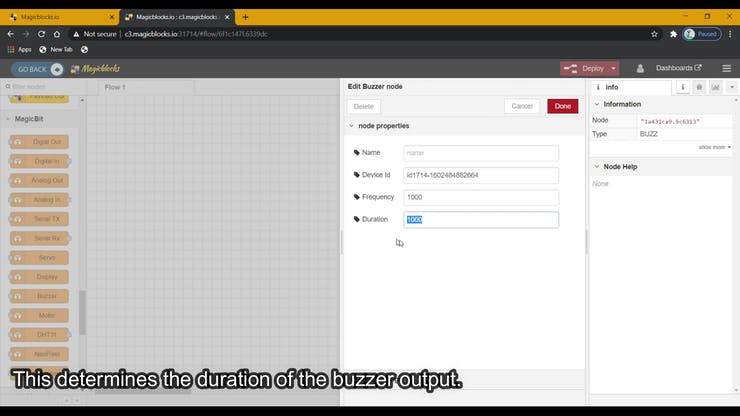

4. Duration determines the duration of the buzzer output.



buzzer project pic 5
Edit node settings.



Set up the Inject Block

(This Node is used to activate the buzzer repeatedly between an interval)

1. Drag & Drop the Inject Block from the input nodes section on the left of the screen to the flow.



buzzer project pic 6
Drag and drop Inject node.



2. Make sure the payload type is timestamp and repeat is set to the interval.



buzzer project pic 7

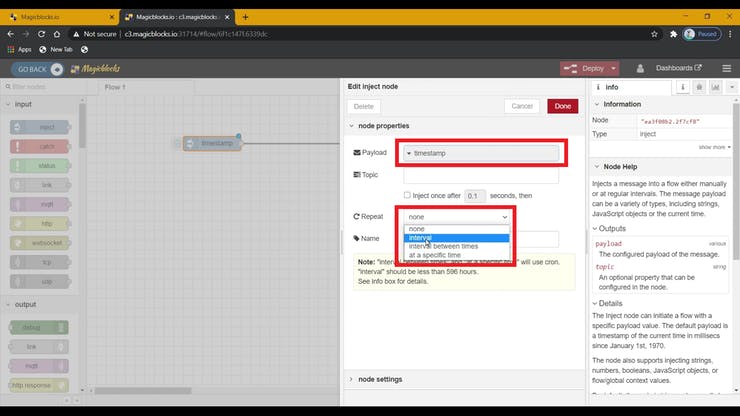

Edit inject node.

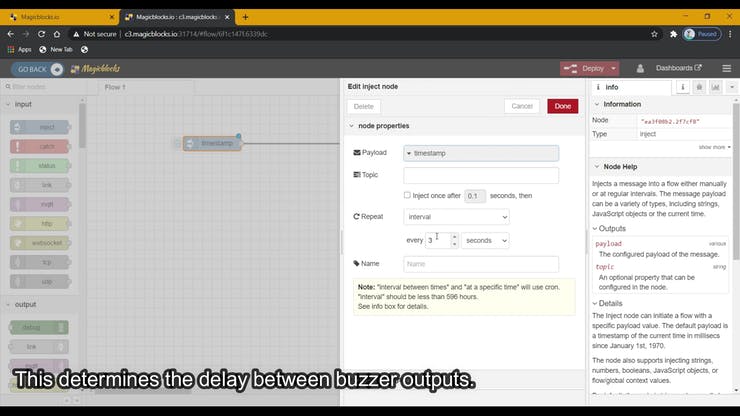

3. Next set an interval, this will determine the delay between buzzer outputs.



buzzer project pic 8
Edit inject node.



[Optional] Import Already Setup Nodes

If you had trouble setting up nodes, you can use the import feature in Magicblocks to get the nodes which have been already set up.

  • First copy this code to your clipboard;
[{"id":"d42a3723.bfa948","type":"BUZZ","z":"6f1c147f.6339dc","name":"","epId":"","frequency":1000,"duration":1000,"x":670,"y":1060,"wires":[]},{"id":"70337f65.8b6f1","type":"inject","z":"6f1c147f.6339dc","name":"","topic":"","payload":"","payloadType":"date","repeat":"3","crontab":"","once":false,"onceDelay":0.1,"x":490,"y":1060,"wires":[["d42a3723.bfa948"]]}]
  • Click on the options menu on the top right-hand corner of the screen.



buzzer project pic 10

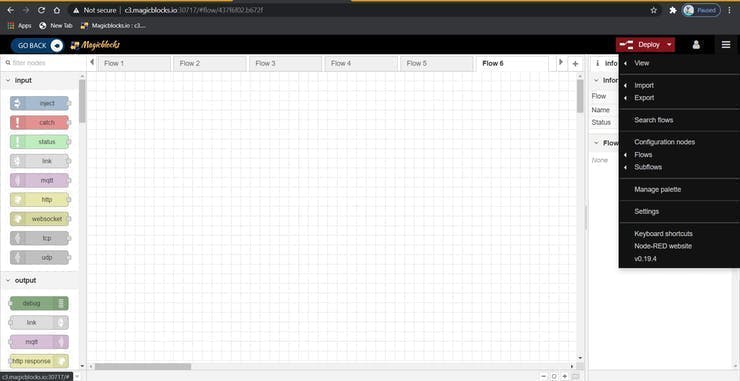

Import codes.

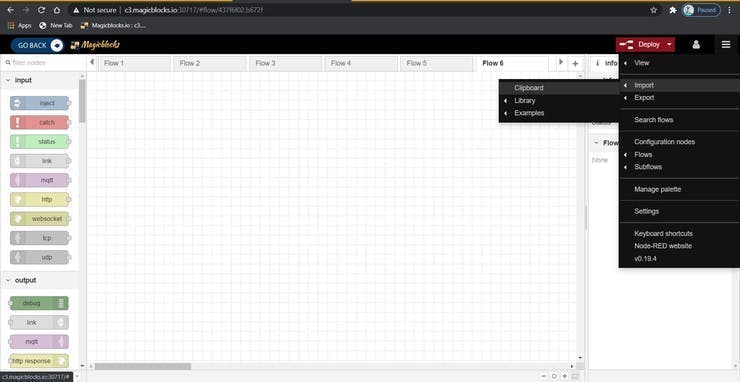

  • Next, hover your cursor over the Import sub-menu.
buzzer project pic 11
Import codes.
  • Then click on Clipboard and paste the code on your clipboard to the text field
buzzer project pic 12

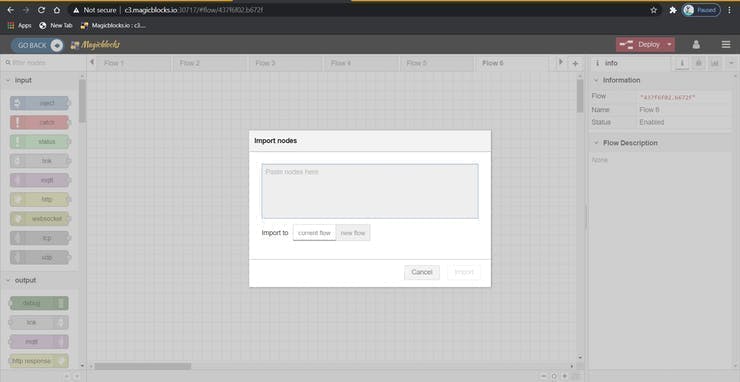

Import codes from the clipboard.
  • Select current flow or new flow and click on Import.

IMPORTANT

Make sure you type your device ID on the Buzzer node properties.

Finally, Deploying the Blocks

  • Connect all the blocks.
  • Click on the Deploy button on the top right-hand corner of the screen.
  • The Buzzer will activate according to the frequency, duration, and delay given.
  • You can change the frequencies and get a different frequency output from the buzzer.



buzzer project pic 13

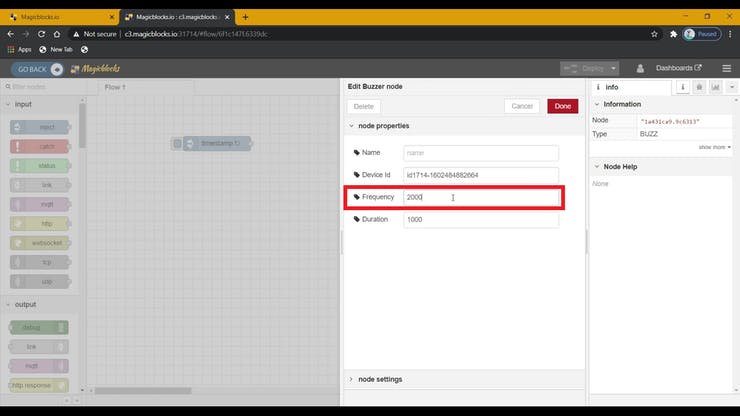

Edit the Buzzer node — set frequency.



buzzer project pic 14

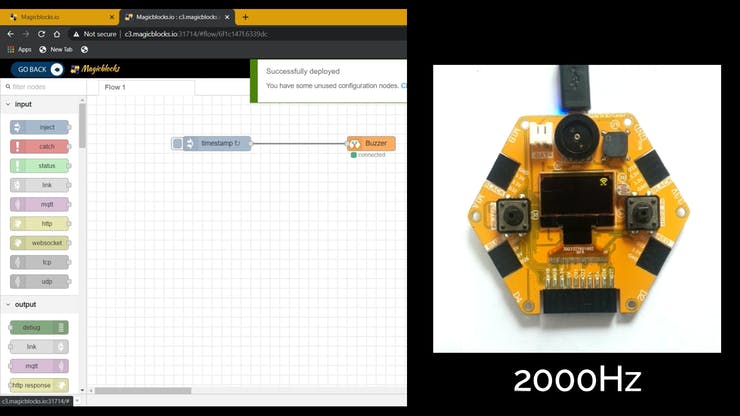

Results of the project.
